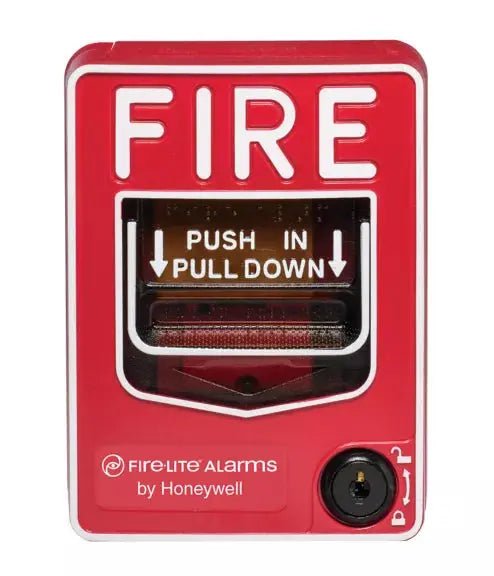

Fire-Lite® BG-12 Series Fire Alarm Pull Station

The Fire-Lite BG-12 Series Pull Station is a durable, user-friendly manual fire alarm activation device designed for commercial, industrial, and institutional facilities. Available in single- and dual-action models, the BG-12 series ensures reliability, compliance, and ease of use in any fire protection system.

Key Features & Benefits

• Highly visible red housing with clear labeling
• ADA compliant with 5 lb maximum pull-force
• Available in single-action and dual-action models
• PUSH IN / PULL DOWN handle latches in down position for clear indication
• “ACTIVATED” appears in bright yellow on handle after use
• False alarm resistance – won’t trigger from bumps or shakes
• Braille text provided on handle for accessibility
• Durable polycarbonate housing with multiple mounting options
• Hex- and key-lock options available (US patented quarter-turn hex-lock)
• Station can be opened for inspection and maintenance without triggering an alarm

Certifications

• UL Listed: S692
• ULC Listed: S692
• CSFM Approved: 7150-0028:199
• FM Approved
• MEA Approved: 67-02-E
• Meets UL 38 Standard for Manually Actuated Signaling Boxes
• Patented: US Patent Nos. D428,351 / 6,380,846 / 6,314,772 / 6,632,108

Applications

Designed for schools, offices, hospitals, retail stores, and other facilities where reliable and accessible fire alarm activation is required.

Model: Fire-Lite BG-12 Series (Single-Action & Dual-Action Options)
