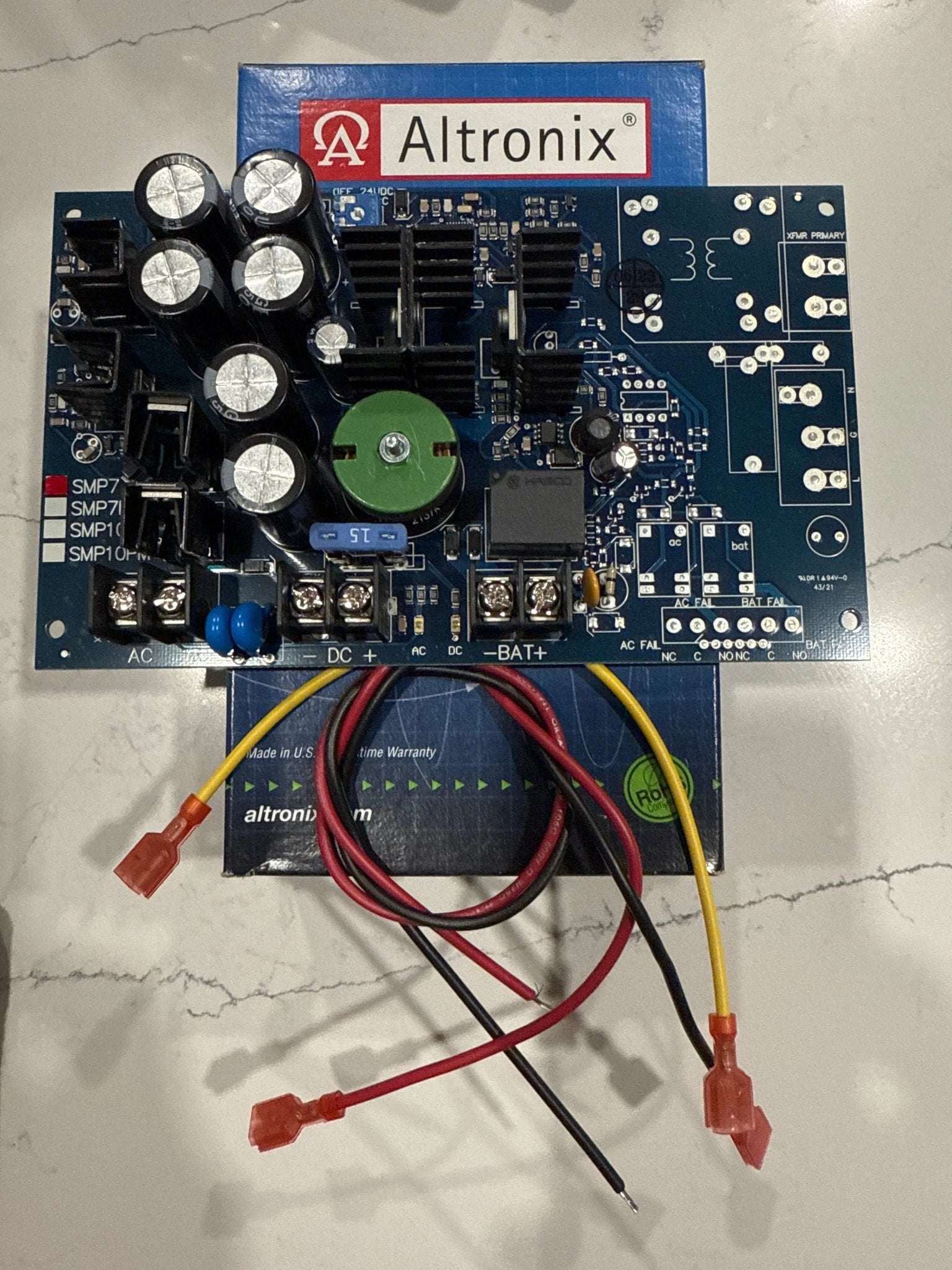

Altronix SMP7 Supervised Power Supply/Charger – 6/12/24VDC, 6A

The Altronix SMP7 is a UL Listed, supervised power supply/charger designed to provide reliable filtered and regulated DC power for access control, fire alarm, security, and CCTV systems. With selectable output voltages and built-in battery charging, it ensures clean power distribution and uninterrupted operation.

Key Features & Benefits

• Selectable output: 6VDC, 12VDC, or 24VDC @ 6 Amps
• Filtered and regulated DC output for sensitive electronics
• Supervised power supply with AC fail and battery fail monitoring
• Built-in battery charger supports sealed lead-acid/gel batteries
• Thermal overload and short circuit protection
• LED indicators for AC and DC power status
• UL Listed, CSA and CE approved

Applications

Ideal for powering access control systems, fire alarm panels, CCTV equipment, and security peripherals requiring clean and uninterrupted power with battery backup support.

Specifications

• Input: 115VAC 60Hz, 3.5A
• Output: 6VDC, 12VDC, or 24VDC @ 6 Amps (fused)
• Battery backup: Supports sealed lead-acid/gel batteries (sold separately)
• Protection: Thermal and overload protection with automatic reset
• Dimensions: Compact board-level module (fits standard enclosures)

What’s Included

• 1 × Altronix SMP7 Power Supply/Charger Board
• Installation instructions
