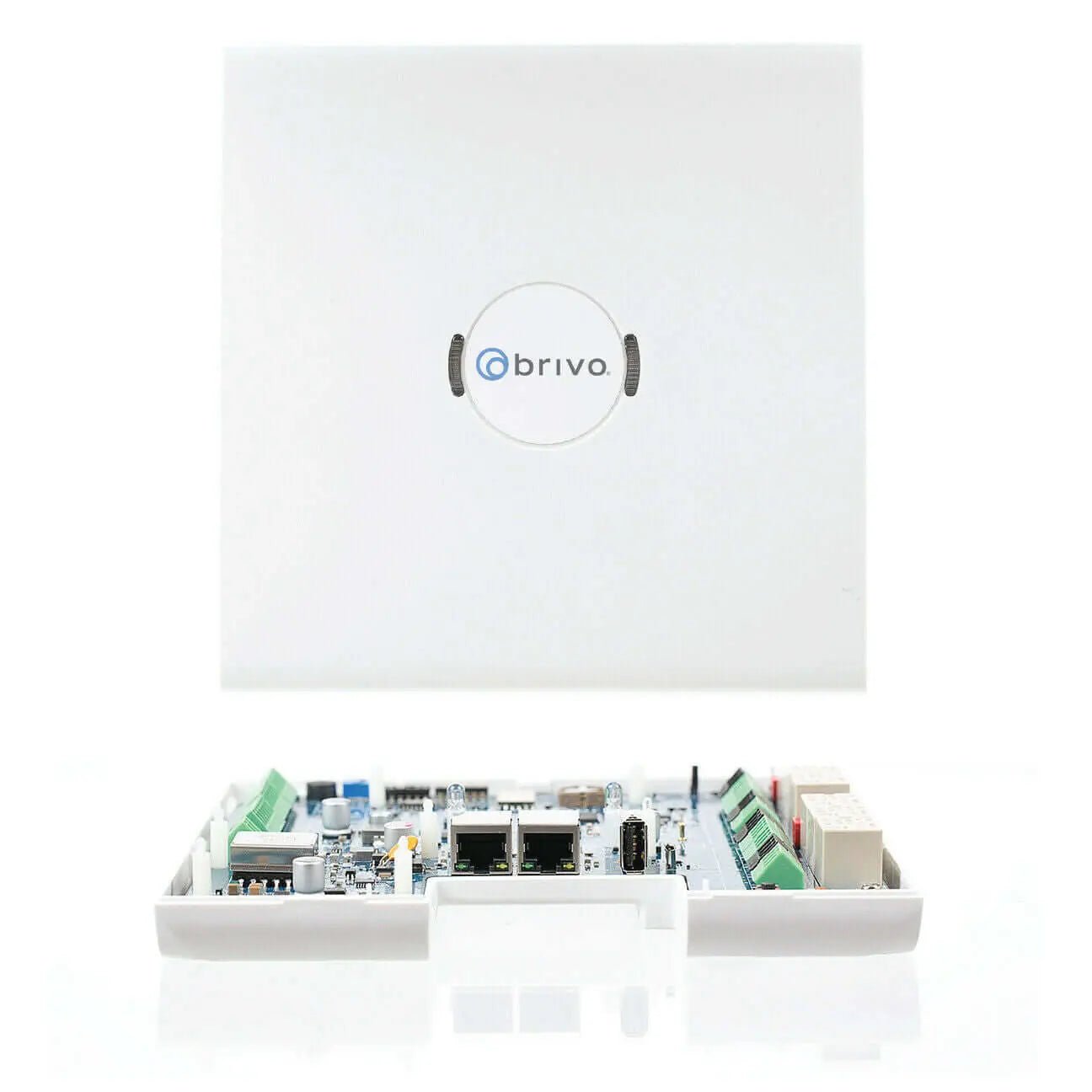

Brivo ACS300 — 2-Door IP Controller (PoE+)

Compact, cloud-ready controller for two doors and two hardwired readers. The ACS300 is designed for Brivo Onair® accounts and supports Ethernet/Wi-Fi, encrypted communications, and Brivo Mobile Pass for modern, secure access control.

Highlights

• IP-based access control and alarms
• Controls 2 doors; supports up to 2 card readers
• Brivo Mobile Pass credential support
• Host communications via Ethernet (10/100) and/or Wi-Fi (802.11 b/g/n)
• PoE+ power option for simplified installation
• Encrypted storage & TLS 1.2+ communications (AES-256, SHA-256, 4096-bit cert)
• Digital-certificate host authentication
• Reader support: Wiegand and OSDP (RS-485)
• Supports select wireless door locks

I/O & Capacity

• Event history: 60,000 events (FIFO) offline from host
• Inputs (8 total): (2) door position, (2) request-to-exit, (4) auxiliary
• Outputs (6 total): (2) selectable door lock relays — wet (12VDC, 350 mA) or dry (6 A @ 28 VDC), plus (4) general-purpose dry relays (6 A @ 28 VDC)
• Reader power output: each Wiegand port up to 350 mA @ 12 VDC; RS-485 port total up to 350 mA @ 12 VDC

Security

• TLS 1.2+ with AES-256 encryption and SHA-256 certificates (4096-bit key)
• ACS300-A option supports FIPS 140-2 validated encryption module (license required)

Power

• Recommended: Power over Ethernet (PoE+) from switch or injector
• Alternate: 12 VDC, 2.5 A power supply (not included)
• Max consumption: 12 VDC @ 2.5 A peak with all outputs at rated limits

Environmental & Physical

• Operating temperature: 32°F to 125°F (0°C to 49°C)
• Humidity: up to 85% non-condensing
• Enclosure dimensions: 7.4" W × 7.5" H × 1.5" D (187 × 190 × 40 mm)

What’s Included

• (2) MOV surge suppressors
• Controller board (enclosure/power supply sold separately unless otherwise noted)

Compliance

• UL 294 Access Control
• FCC Part 15 Class A

Compatibility & Requirements

• Works with Brivo Onair® cloud platform (service required)
• Supports Brivo ACS ecosystem, Mobile Pass, Wiegand/OSDP readers, and select wireless locks
