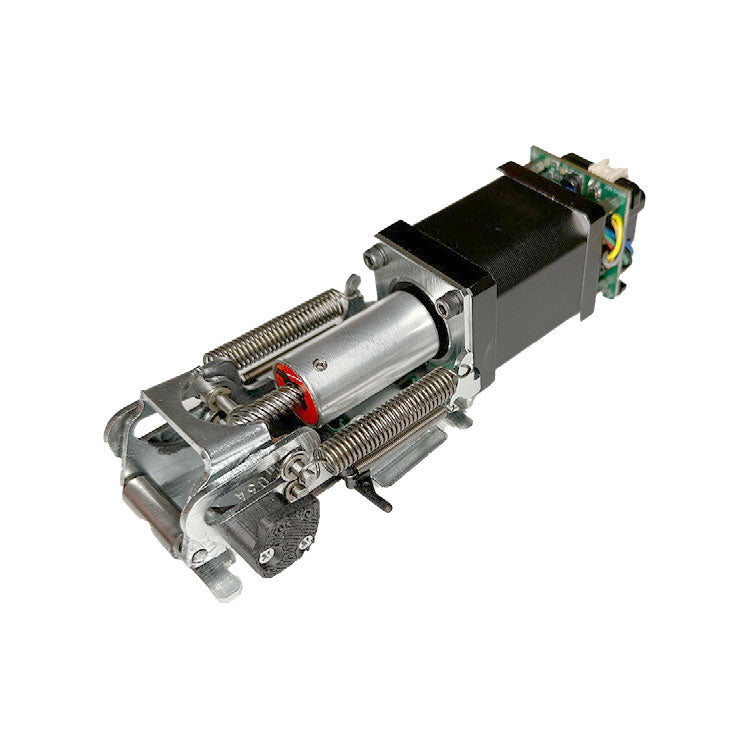

Command Access MLRK1-JAC12 Motorized Latch Retraction Kit — For Jackson 1275/1285/1295 & Kawneer 1686/1786 (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-JAC12 Motorized Latch Retraction Kit — For Jackson 1275/1285/1295 & Kawneer 1686/1786 (Field Install, UL, 3-Year Warranty)

$495.00 USD
$495.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Jackson 1275/1285/1295 & Kawneer 1686/1786 to Motor-Driven Latch Retraction

The Command Access MLRK1-JAC12 is a robust, field-install motorized latch retraction kit that converts Jackson 1275/1285/1295 and Kawneer 1686/1786 (plus select equivalents) from mechanical to electrified pullback while maintaining listings. The only hole to drill is the wire raceway. One-touch PTS (Push-to-Set) simplifies post-install fine adjustment, and the MM5 Smart Module provides onboard diagnostics with audible feedback. UL Listed and backed by a 3-year “no hassle” warranty.

Why installers choose MLRK1-JAC12

  • True field retrofit — raceway drilling only; minimal rail modification.
  • Fast, quiet, smooth & strong motor performance.
  • 1-Touch PTS post-install fine adjustment (≈ 1/4").
  • MM5 Smart Module with onboard diagnostics & audible feedback.
  • Low-torque mode available; capable of pulling even tall vertical-rod doors.
  • Electric dogging rated for continuous duty; auto re-engages if the pushpad is pulled.
  • Long wire runs up to 300′ with 18 AWG for centralized power supply placement.
  • Built-in REX (Request-to-Exit) for panel integration.

Compatibility

Works with Jackson 1275/1285/1295 (Jackson 12 series), Kawneer 1686/1786 (Kawneer 16/17 series), and select PD16 / AHT 8/9 equivalents.

Always verify exact model/handing, listings, and AHJ requirements for your project.

Specifications

Voltage Range 24 VDC ±10% (system protection: shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Control Module MM5 Smart Module with onboard diagnostics & audible feedback
Modes Standard / Low-torque (field selectable)
PTS Adjustment ≈ 1/4″
Request-to-Exit Built-in REX kit
Wire Run Up to 300′ with 18 AWG (two conductors)
Harness ~8″ cable with robust quick-connect (Molex) to the MM5 module
Duty Rating Electric dogging, continuous duty; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Confirm device series/handing and rail cut length before energizing.
  • Use a regulated 24 VDC supply sized for inrush; verify 24–26.4 VDC at the rail under load.
  • Route cabling to avoid pinch points; secure the raceway and strain relief.
  • Integrate the optional REX contacts per your access control panel’s input requirements.

What’s Included

MLRK1-JAC12 motor kit with MM5 module, quick-connect harness, hardware, and installation instructions, includes Built-in REX.
