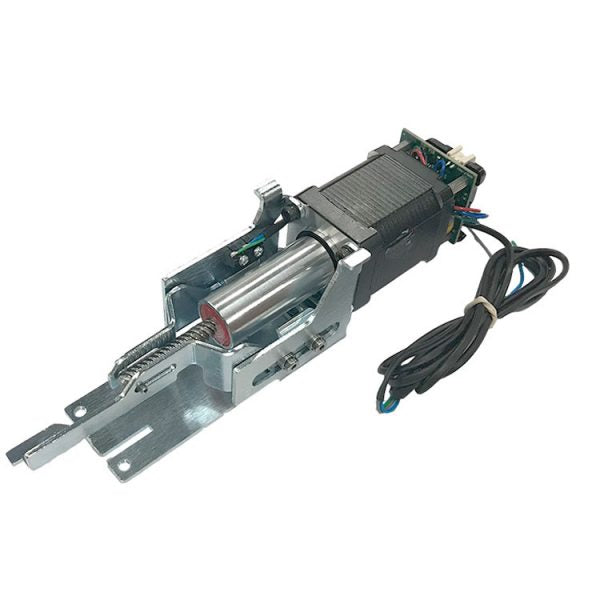

Command Access MLRK1-VD22 Motorized Latch Retraction Kit — For Von Duprin 22 Series Exit Devices (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-VD22 Motorized Latch Retraction Kit — For Von Duprin 22 Series Exit Devices (Field Install, UL, 3-Year Warranty)

$445.00 USD
$445.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Von Duprin 22 Exit Devices to Motor-Driven Latch Retraction

The Command Access MLRK1-VD22 is a field-install, motorized latch retraction kit that converts Von Duprin 22 Series exit devices from mechanical to electrified pullback while maintaining UL listings. It hooks directly to the dogging tailpiece and secures with two screws—no rail drilling beyond the wire raceway—making it a fast, clean retrofit. The kit includes Push-to-Set (PTS) fine adjustment, a built-in Request-to-Exit (REX) switch, and the MM5 Smart Module for onboard diagnostics and efficient power management. Backed by a 3-year “no hassle” warranty.

Why installers choose MLRK1-VD22

  • Quick retrofit — attaches to the dogging tailpiece; only drill the raceway for wiring.
  • Fast, quiet, smooth & strong motor performance.
  • PTS post-install fine adjustment (≈ 1/4").
  • Built-in REX standard on every unit.
  • MM5 Smart Module with onboard diagnostics and audible feedback.
  • Standard-torque mode capable of pulling even tough tall vertical-rod doors.
  • Electric dogging rated for continuous duty with auto re-engage if the pushpad is pulled.
  • UL Listed with a 3-year warranty.

Compatibility

Works with all Von Duprin 22 Series exit devices.

Specifications

Voltage Range 24–28 VDC (over-voltage protection: unit shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Control Module MM5 Smart Module with onboard diagnostics
Modes Standard torque; energy-conscious yet capable for difficult doors
PTS Adjustment ≈ 1/4″
Built-in REX Yes (standard on all units)
Wire Run Up to 300′ with 18 AWG
Cutdown Details 36″/48″ rails — 6.5″ filler plate required
Duty Rating Electric dogging rated continuous; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Confirm device series, handing, and cut length before energizing.
  • Use a regulated 24 VDC supply sized for inrush; verify 24–28 VDC at the rail under load.
  • Route and secure cabling to avoid pinch points in the rail/hinge area.
  • Integrate REX contacts per your access control panel’s input requirements.

What’s Included

MLRK1-VD22 motor kit with MM5 module, integrated REX, and hardware/instructions for Von Duprin 22 rails.
