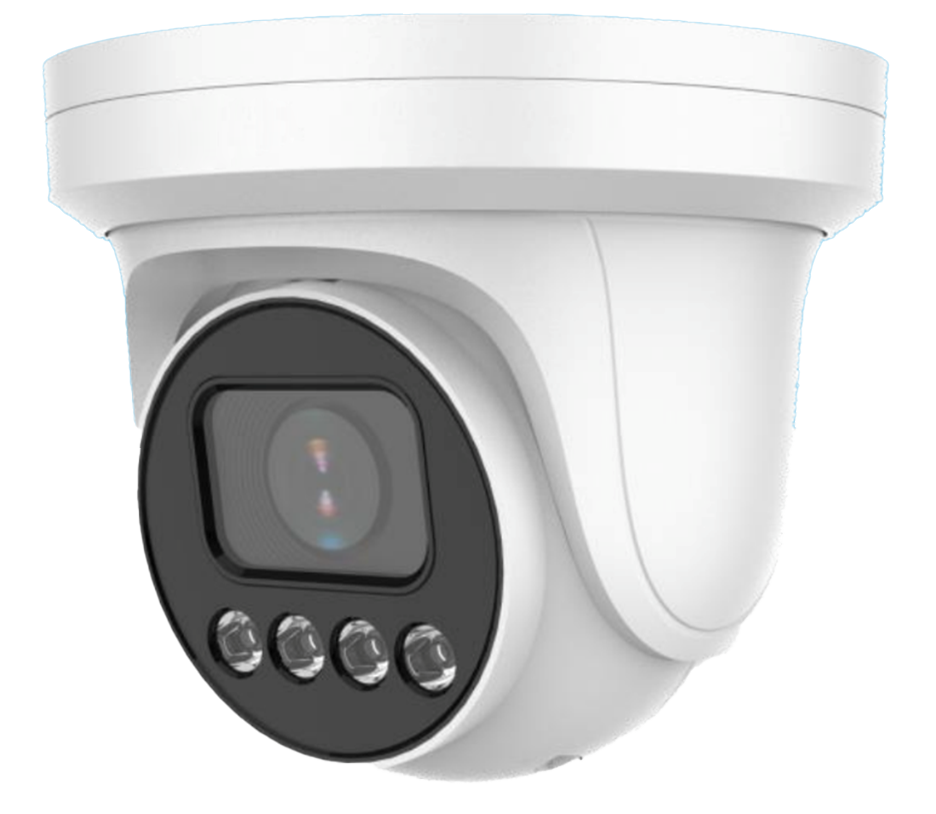

Eagle Eye Networks DT02 4MP Outdoor Turret Camera – Motorized Lens, NDAA, IR, PoE, IP66
Eagle Eye Networks DT02 4MP Outdoor Turret Camera – Motorized Lens, NDAA, IR, PoE, IP66
Couldn't load pickup availability
Eagle Eye Networks DT02 4MP Indoor/Outdoor Turret Camera
The Eagle Eye Networks DT02 is a commercial-grade 4 megapixel turret IP camera designed for indoor and outdoor video surveillance. It features a 2.7–13.5mm motorized varifocal lens, integrated Smart IR illumination, a built-in microphone, Power over Ethernet, and microSD edge storage support.
The DT02 is NDAA compliant and is designed for integration with the Eagle Eye Cloud VMS and Eagle Eye Camera Direct applications.
DT02 Key Specifications
| Manufacturer | Eagle Eye Networks |
| Model | DT02 |
| Part Number | EN-CDUT-002a |
| Resolution | 4 Megapixel |
| Image Sensor | 1/2.8-inch progressive scan CMOS |
| Lens | 2.7–13.5mm motorized varifocal lens |
| Night Vision | Smart IR LEDs, up to 40m (131 ft.) |
| Dynamic Range | WDR with HLC/BLC |
| Video Compression | H.265, H.264 and MJPEG |
| Audio | Built-in microphone |
| Edge Storage | microSD card support |
| Power | PoE IEEE 802.3af or 12VDC |
| Environmental Rating | IP66 indoor/outdoor |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Power Consumption | 7.5W maximum |
Motorized Varifocal Lens
The DT02's 2.7–13.5mm motorized lens provides significantly more flexibility than a fixed-lens camera. The viewing angle can be adjusted to provide a wide overview or a tighter field of view for entrances, parking areas, gates, loading areas and other commercial applications where camera placement or target distance varies.
This makes the DT02 a strong choice when a fixed 2.8mm lens may be too wide or when the camera needs to be electronically adjusted after installation.
Commercial Indoor and Outdoor Surveillance
The turret form factor is well suited for commercial exterior installations and large indoor areas. Typical applications include:
- Small and medium parking lots
- Parking garages
- Building entrances
- Work yards
- Warehouses
- Loading and service areas
- Commercial offices
- Fields and open areas
Smart IR Night Vision
Integrated Smart IR illumination provides nighttime viewing with IR LEDs rated for up to approximately 40 meters (131 feet). The camera supports low-light operation and automatically transitions for nighttime surveillance.
Built-In Microphone and Edge Storage
The DT02 includes a built-in microphone for compatible audio recording applications and supports microSD edge storage for applicable Eagle Eye Camera Direct configurations.
Power over Ethernet
The DT02 supports IEEE 802.3af PoE, allowing network communications and power to be delivered over a single Ethernet cable. It can also be powered by 12VDC where required.
Eagle Eye Cloud VMS Integration
The DT02 is designed for secure integration with Eagle Eye Cloud VMS, Eagle Eye Camera Direct and supported Eagle Eye video solutions. Remote viewing, system management, health monitoring and cloud video retention depend on the selected Eagle Eye service configuration.
An active Eagle Eye Networks service subscription is required for Eagle Eye Cloud VMS or Camera Direct operation.
Avenger Security can provide the Eagle Eye subscription, system configuration, installation, camera migration, networking assistance and ongoing technical support.
Professional Installation Recommendation
For outdoor installations, Avenger Security recommends proper weatherproof cable termination and use of an approved Eagle Eye junction box or mounting accessory where needed to protect the network connection and maintain a professional installation.
Need Help Selecting an Eagle Eye Camera?
Contact Avenger Security for help determining camera placement, lens requirements, field of view, network bandwidth, local or cloud retention, and compatibility with your existing Eagle Eye system.
