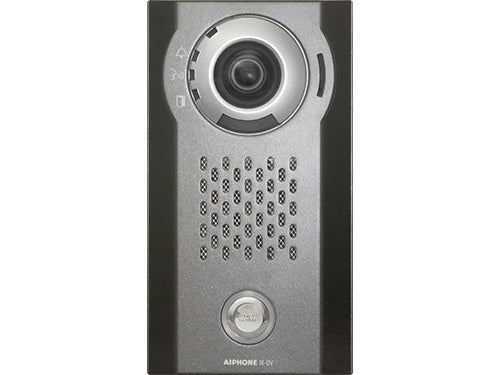

Aiphone IX-DV Surface-Mount IP Video Door Station

Aiphone IX-DV Surface-Mount IP Video Door Station

The Aiphone IX-DV is a vandal-resistant, weather-resistant surface-mount IP video door station for Aiphone IX and IXG Series systems. It combines two-way audio, video, call signaling, door-release integration and network connectivity in a rugged aluminum die-cast enclosure for commercial entrances, secured doors and access-control applications.

Key Features

• Surface-mounted IP video door station
• Compatible with Aiphone IX and IXG Series devices
• SIP compliant
• ONVIF Profile S compliant
• RTSP video streaming capability
• PoE powered with PoE pass-through capability
• Optional 24 VDC power
• 1/3-inch CMOS 1.23-megapixel camera
• Manual camera vertical adjustment: +15°, 0° or -8°
• White LED for low-light illumination
• Weather- and vandal-resistant aluminum die-cast faceplate
• IP54 and IK08 rated
• Two contact outputs
• Six trigger inputs
• Conversation audio/video recording to compatible microSD card
• IEEE 802.1X port security
• UL Certified

Power & Network

The IX-DV can be powered by PoE using IEEE 802.3af Class 0 or by a compatible 24 VDC power supply. PoE pass-through requires IEEE 802.3at Type 2 PoE+. The station supports common IP intercom and network functions including SIP, ONVIF Profile S and RTSP video streaming.

Commercial Entry & Access Control Applications

The IX-DV is well suited for commercial entrances, employee doors, gated access points, schools, offices, healthcare facilities and other secured openings where users need video verification and two-way communication before granting access. Its contact outputs can be used with compatible access-control and door-release hardware, while its rugged housing supports exposed entry applications.

Aiphone Intercom & Access Control in Austin, Texas

Avenger Security Services / Security Tekton installs and supports Aiphone IX and IXG Series IP intercom systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. We can integrate compatible Aiphone door stations with electric strikes, electrified locks, access-control systems and network infrastructure.

Manufacturer: Aiphone
Model: IX-DV
Series: IX / IXG
Type: Surface-Mount IP Video Door Station
Camera: 1/3-inch CMOS, 1.23 MP
Power: PoE IEEE 802.3af Class 0 or 24 VDC
Power Draw: 5.28 W
Protection: IP54 / IK08
Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Dimensions: 8-1/16 in. H x 4-1/2 in. W x 2-1/16 in. D
