Aiphone IX-MV7-HB IP Video Answering Station with Handset

Aiphone IX-MV7-HB IP Video Answering Station with Handset

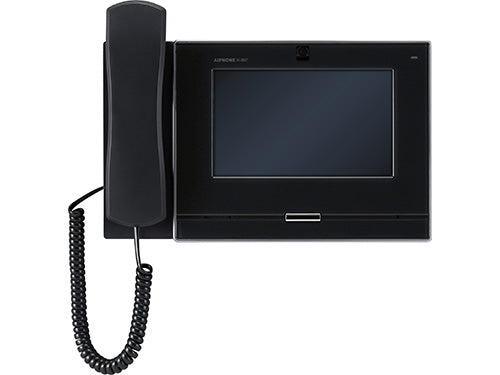

The Aiphone IX-MV7-HB is a black IP video answering station with handset and a 7-inch touchscreen for Aiphone IX and IXG Series systems. It is designed for commercial intercom, access-control and security applications where users need to answer calls, view visitors, communicate by handset or hands-free audio, and control connected door-release functions from a networked master station.

Key Features

• 7-inch TFT LCD touchscreen
• Integrated handset for full-duplex private communication
• Hands-free or push-to-talk operation
• Built-in 720p camera with privacy shutter
• SIP compliant
• ONVIF Profile S compliant
• Compatible with Aiphone IX and IXG Series devices
• Eight customizable speed-dial buttons
• Picture-in-Picture support for simultaneous viewing of an ONVIF Profile S IP camera and Aiphone video intercom
• Audio/video conversation recording to compatible microSD card
• Two contact outputs
• Four trigger inputs
• 8-ohm, 1/2-watt speaker output for expanded announcement coverage
• 600-ohm audio input
• PoE powered using IEEE 802.3af Class 0
• UL certified

Network & Video Specifications

The IX-MV7-HB operates over standard IP networks and supports IPv4/IPv6 along with SIP, HTTPS, RTSP, RTP, DHCP, NTP, DNS and other common network protocols. Video uses H.264/AVC and Motion JPEG codecs, while the integrated camera provides 720p resolution. IEEE 802.1X port security is supported for managed network environments.

Installation & Mounting

The station can be installed on the included multi-angle desk stand at 30°, 45° or 60°, or wall-mounted using the included bracket. PoE power simplifies deployment by allowing network communication and power to be delivered over a single Ethernet connection.

Commercial Intercom & Access Control in Austin, Texas

Avenger Security Services / Security Tekton installs and supports Aiphone IP intercom, video entry and access-control systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. We can integrate compatible Aiphone stations with commercial door hardware, electric strikes, electrified locks, access-control systems and network infrastructure.

Manufacturer: Aiphone
Model: IX-MV7-HB
Series: IX / IXG
Type: IP Video Answering Station with Handset
Display: 7-inch TFT LCD Touchscreen
Camera: 1/3-inch CMOS, 720p
Power: PoE, IEEE 802.3af Class 0
Power Draw: 4.32 W
Dimensions: 8-1/16 in. H x 11 in. W x 2-3/16 in. D
Operating Temperature: 32°F to 104°F (0°C to 40°C)
