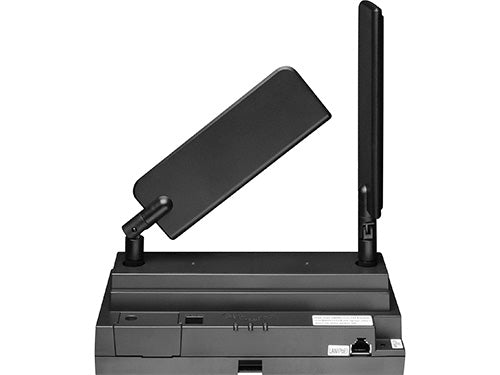

Aiphone IXGW-TGW IXG Cloud Gateway Adapter with Mobile App Support

Aiphone IXGW-TGW IXG Cloud Gateway Adapter with Mobile App Support

The Aiphone IXGW-TGW is the cloud gateway adapter for Aiphone IX | IXG Series systems. It enables remote management, mobile app communication, cellular gateway functionality, and telephone calling from compatible door and entrance stations. It is a key component for commercial and multi-tenant installations that need remote visitor communication and door release from smartphones.

Key Features

• Required for remote management of Aiphone IX | IXG Series systems
• Supports the Aiphone IXG mobile app for iOS and Android
• Allows tenants and users to speak with visitors and release doors remotely
• Supports up to eight simultaneous intercom calls per gateway
• Supports up to 9,999 IXG mobile apps
• Up to eight mobile apps can be registered per tenant station
• Optional 4G LTE data connection
• Included AT&T nano SIM card
• LTE connection can serve as the primary network path or backup/failsafe connection
• Allows telephone calls from compatible door and entrance stations
• PoE powered using IEEE 802.3af Class 0
• DIN rail mountable
• 10BASE-T / 100BASE-TX Ethernet
• Supports IPv4/IPv6, SIP, HTTPS, RTP, SRTP, DHCP, NTP, DNS, MQTT, ICE, DTLS and related network protocols
• TLS 1.2 and IEEE 802.1X security support

Mobile App & Remote Door Release

With the IXGW-TGW installed and properly configured, compatible IXG systems can use the IXG mobile app so authorized users can receive calls from visitors, communicate with them, and release connected doors while away from the property. This is particularly useful for offices, gated facilities, commercial properties and multi-tenant buildings where staff or tenants may not always be at a fixed answering station.

Remote Management & Cellular Backup

One IXGW-TGW gateway is required per remotely managed IX | IXG system. In systems that do not use remote management, up to 99 gateways can be supported. The optional activated cellular service can provide a 4G LTE primary or backup network connection and supports a single telephone number per tenant.

Aiphone Intercom & Access Control in Austin, Texas

Avenger Security Services / Security Tekton installs and supports Aiphone IX and IXG Series IP intercom and access-control systems throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. We can integrate Aiphone mobile app functionality with compatible door stations, electric strikes, electrified locks, access-control systems and network infrastructure.

Manufacturer: Aiphone
Model: IXGW-TGW
Series: IX / IXG
Type: Cloud Gateway Adapter / Mobile App Gateway
Power: PoE, IEEE 802.3af Class 0
Power Consumption: 2.8 W standby / 5.8 W maximum
LAN: 10BASE-T / 100BASE-TX Ethernet
Wireless: LTE / WCDMA
Included SIM: AT&T nano SIM
Channels: 8 intercom / 1 phone
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Dimensions: 4-1/4 in. H x 8-1/4 in. W x 2-3/8 in. D
