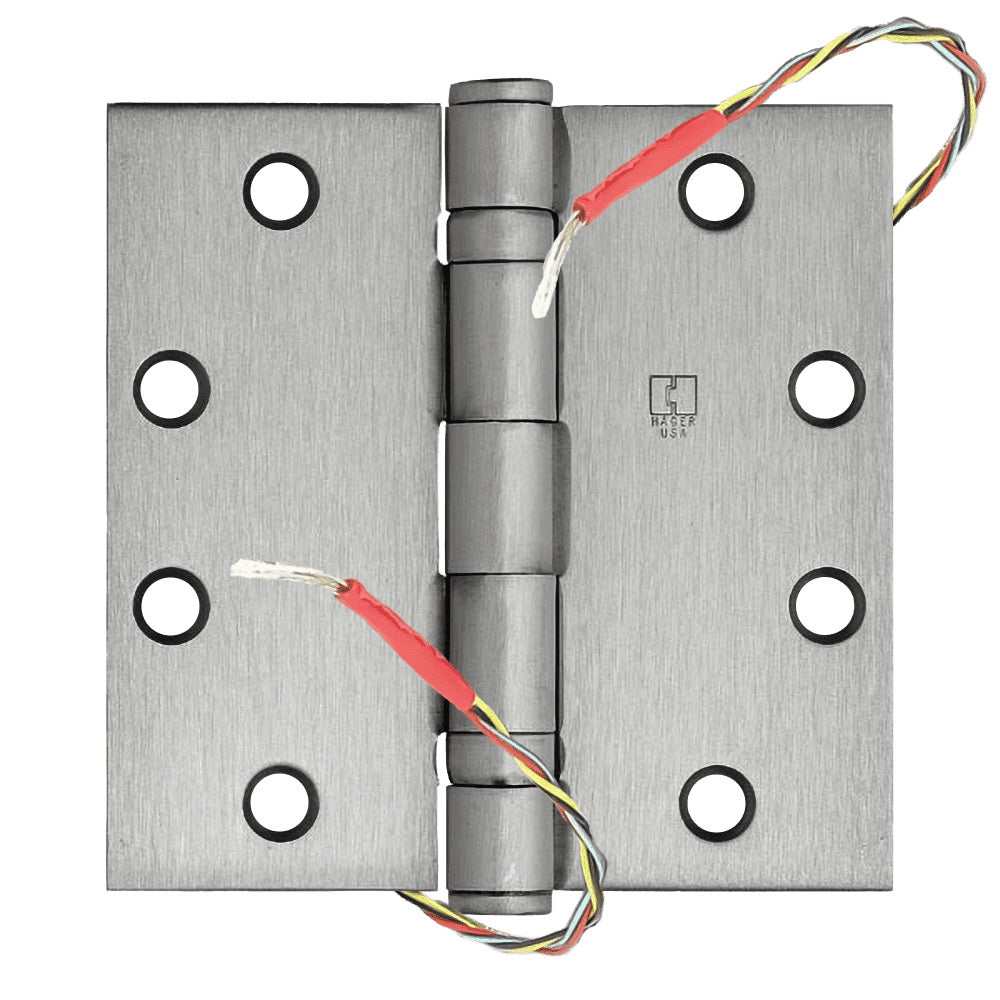

Hager BB1279 ETW4 4.5 x 4.5 Ball Bearing Electrified Hinge – 4-Wire

Hager BB1279 ETW4 4.5 x 4.5 Ball Bearing Electrified Hinge – 4-Wire

The Hager BB1279 ETW4 is a commercial full-mortise, standard-weight ball bearing hinge with concealed electric through-wire transfer for access-control and electrified door hardware applications. The 4-wire ETW configuration allows low-voltage power and signal conductors to pass from the frame into the door without an exposed door cord.

Key Features

• 4-1/2 in. x 4-1/2 in. full-mortise commercial hinge
• ETW4 concealed 4-wire electric through-wire configuration
• Two ball bearings for smooth operation
• Five-knuckle design
• Standard-weight construction for medium-weight doors and medium-frequency service
• Low-voltage electric current transfer through the hinge
• Up to 48 VDC, 3.5 amps continuous or 16 amps pulse for Hager ETW applications
• ANSI A8112
• UL Listed
• Complies with NFPA 80 requirements when used in appropriate fire-rated door assemblies
• Suitable for electrified locks, electrified trim, latch-retraction hardware, request-to-exit devices, door monitoring and other compatible low-voltage door hardware

Access Control Power Transfer

An electrified hinge provides a concealed path for low-voltage wiring between the door frame and moving door. This is often preferred over exposed armored door loops on finished commercial openings because the wiring remains concealed when the door is installed.

The ETW4 modification provides four continuous conductors through the hinge. Always verify the voltage, current draw, conductor requirements and wiring configuration of the connected locking or access-control hardware before installation.

Commercial Access Control Installation in Austin, Texas

Avenger Security Services / Security Tekton installs and services commercial access-control systems, electrified door hardware, power-transfer hinges, electric strikes, electrified exit devices, readers, request-to-exit devices and access-control panels throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas.

Manufacturer: Hager Companies
Series: BB1279
Modification: ETW4
Size: 4-1/2 in. x 4-1/2 in.
Type: Full-Mortise Ball Bearing Electrified Hinge
Conductors: 4-Wire Electric Through-Wire
Application: Commercial Access Control / Electrified Door Hardware
