Hager BB1279 ETW-8 4.5 x 4.5 Ball Bearing Electrified Hinge – 8-Wire

Hager BB1279 ETW-8 4.5 x 4.5 Ball Bearing Electrified Hinge – 8-Wire

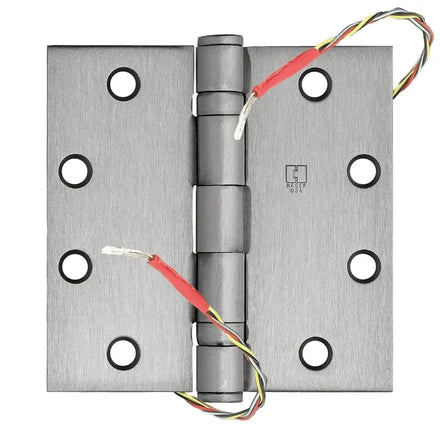

The Hager BB1279 ETW-8 is a commercial full-mortise, standard-weight ball bearing hinge with concealed electric through-wire power transfer for access-control and electrified door hardware applications. The ETW-8 configuration provides eight continuous conductors through the hinge, allowing low-voltage power and control wiring to pass from the frame into the door without an exposed door cord.

Key Features

• 4-1/2 in. x 4-1/2 in. commercial full-mortise hinge
• ETW-8 concealed electric through-wire configuration
• Eight continuous 28-gauge conductors
• Two ball bearings for smooth, reliable door operation
• Five-knuckle design
• Standard-weight steel construction with steel pin
• Designed for medium-weight doors and medium-frequency service
• Low-voltage power transfer up to 48 VDC
• Rated up to 3.5 amps continuous or 16 amps pulse/inrush
• ANSI A8112
• UL Listed
• Complies with NFPA 80 requirements when used in appropriate fire-rated door assemblies

8-Wire Power Transfer for Access Control

The ETW-8 modification provides eight concealed conductors through the hinge barrel. This gives installers additional conductor capacity for compatible electrified locks, electrified trim, latch-retraction hardware, request-to-exit devices, door monitoring, signaling and other low-voltage access-control functions.

An electrified hinge keeps the power-transfer wiring concealed between the frame and door, providing a cleaner finished installation than an exposed armored door loop. Hager recommends electrically modified hinges be installed in the center hinge location. Always verify the connected hardware's voltage, current draw and conductor requirements before installation.

Commercial Access Control Installation in Austin, Texas

Avenger Security Services / Security Tekton installs and services commercial access-control systems and electrified door hardware throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. Our work includes electrified hinges, power-transfer hardware, electric strikes, electrified exit devices, electrified locks, readers, request-to-exit devices and access-control panels.

Manufacturer: Hager Companies
Series: BB1279
Modification: ETW-8
Size: 4-1/2 in. x 4-1/2 in.
Type: Full-Mortise Ball Bearing Electrified Hinge
Conductors: 8 Continuous 28-Gauge Wires
Electrical Rating: Up to 48 VDC, 3.5 A continuous / 16 A pulse
Application: Commercial Access Control / Electrified Door Hardware
