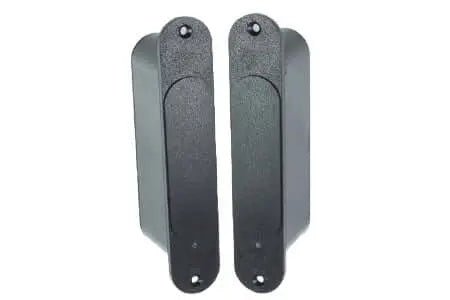

SDC WPT Wireless Power and Signal Transfer Device

The SDC WPT transfers operating power across the door gap from a frame-mounted RF transmitter to a door-mounted receiver. It can simplify selected electrified-lock retrofits where a conventional door raceway or exposed transfer loop is undesirable.

Key features

• Selectable 12VDC or 24VDC door-side output
• Up to 600mA at 12VDC or 300mA at 24VDC
• Supports compatible latch-status, request-to-exit or dry-contact signal transfer
• Timed unlock input with up to 90 seconds of sustained output
• Suitable for door gaps up to approximately 1/4 inch when properly aligned
• No moving wire bundle across the door gap

Important limitations

The WPT is intended for compatible fail-secure, power-to-unlock hardware and intermittent operation. It is not for fail-safe locks, continuous-powered unlocking or continuous dogging. Door construction, alignment, current draw, duty cycle, fire rating and connected signals must be verified. Contact Avenger Security to confirm current availability and suitability before ordering.
