SECO-LARM E-941SA-600 600-lb Electromagnetic Lock

SECO-LARM E-941SA-600 600-lb Electromagnetic Lock

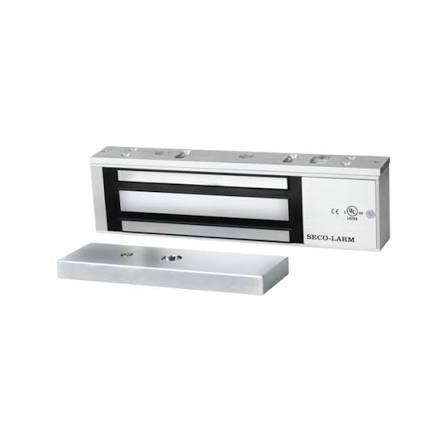

The SECO-LARM E-941SA-600 is a UL-listed, single-door electromagnetic lock designed for commercial access-control applications. It provides 600 lb (272 kg) of holding force and operates on selectable 12 or 24 VDC power.

Key Features

• 600-lb (272 kg) holding force
• Single-door electromagnetic lock
• 12/24 VDC selectable operation
• 500 mA current draw at 12 VDC
• 250 mA current draw at 24 VDC
• Built-in MOV surge protection
• No residual magnetism
• Anodized aluminum housing, US28 finish
• Adjustable mounting bracket
• Detachable faceplate for wiring access
• Complete mounting hardware for typical installations
• Compatible L- and Z-brackets available for alternate mounting applications
• Maximum door thickness: 2 in. (50 mm)
• UL listed for commercial access-control applications

Commercial Access Control Applications

The E-941SA-600 is commonly used on controlled commercial openings where a fail-safe electromagnetic locking device is appropriate. When energized, the magnet secures the armature plate; when power is removed, the lock releases without residual magnetism.

Electromagnetic locks must be installed in accordance with applicable life-safety, fire, egress and access-control requirements. Door swing, mounting configuration, required egress hardware, fire-alarm interface and power-supply design should be verified before installation.

Commercial Access Control in Austin, Texas

Avenger Security Services / Security Tekton installs and services commercial access-control systems and electrified door hardware throughout Austin, Round Rock, Georgetown, Cedar Park, Pflugerville and Central Texas. Our work includes electromagnetic locks, electric strikes, electrified exit devices, readers, request-to-exit devices, power supplies and access-control panels.

Manufacturer: SECO-LARM
Model: E-941SA-600
Type: Single-Door Electromagnetic Lock
Holding Force: 600 lb (272 kg)
Operating Voltage: 12/24 VDC Selectable
Current Draw: 500 mA @ 12 VDC / 250 mA @ 24 VDC
Magnet Dimensions: 9-13/16 in. x 1-11/16 in. x 1 in.
Armature Dimensions: 7-1/4 in. x 1-1/2 in. x 1/2 in.
Operating Temperature: 32°F to 120°F (0°C to 49°C)
